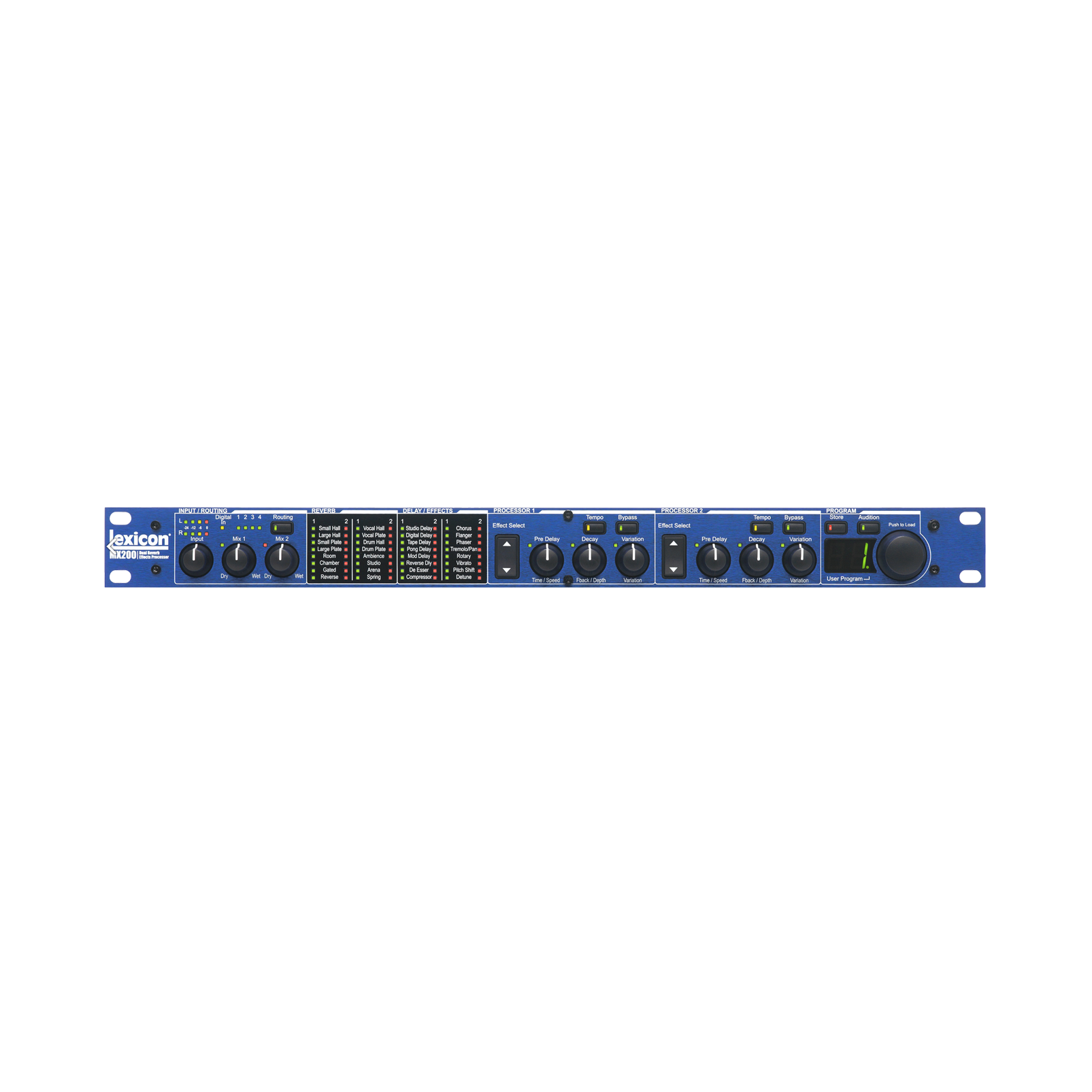

MX200 MX200 MX200



Stereo reverb/effects processor with USB "hardware plug-in" capability

Stereo reverb/effects processor with USB "hardware plug-in" capability

Find a Dealer


Two processors. Two unique applications. One rack space. 32 legendary Lexicon® effects. Endless Possibilities. Whether you're looking for raw processing power with instant front-panel access for live performance, or seeking rich, smooth and complex processing algorithms in the studio, Lexicon® brings the best of both worlds together in the MX200 Dual Reverb/Effects Processor. Designed with both live sound reinforcement and home recording in mind, MX200 features the deep, rich reverb and effects algorithms that built the Lexicon legend, and adds increased versatility with specialty effects and dbx® dynamics. Each of the 32 stunning reverbs and effects – and their parameters – are all instantly accessible within a single button push or knob turn on the intelligently designed front panel without wading through bank after bank of tedious menus. Add powerful Editor/Librarian and VST® / Audio Units software, and bring 35 years of Lexicon heritage to your desktop.

  • Highlights & Specs
  • What's in the box?
  • Manuals & Downloads

MX200 Highlights

  • Flexible routing options
  • USB interface for studio operation
  • Front panel active reverb/effects matrix

General Specifications

Audio Inputs (2) 1/4” TRS balanced or unbalanced
Input Impedance 20K Ohms (balanced), 10K Ohms (unbalanced)
Input Level +4dBu Nominal, +20dBu Maximum
Frequency Response 20 Hz - 20kHz, ref. 1kHz +/- 1dB
THD+N <.007% 20Hz - 20kHz
Audio Outputs (2) 1⁄4” TRS balanced or unbalanced
Output Level +20dBu Maximum
Dynamic Range >107dB A-weighted
A/D Converters 24-bit, 48kHz
Power 9V AC (power supply included)
Audio Processor 24-bit
Software WinXP/Mac OSX VST GUI Interface
Crosstalk > 80dB
Size 1 RU


Width 19 in (48.26 cm)
Height 1.75 in (4.4 cm)
Depth 4.75 in (12.065 cm)

What's in the box?

  • 1 x MX200
  • 1 x Owner’s Manual
  • 1 x Power Supply
  • 1 x MX Edit/USB Driver CD
  • 1 x Lexicon Warranty Card

Manuals & Downloads

The latest owner's manuals, quick start guides, and documents.
